24/12/2024 - wing root electrical connection, deutsch connectors - 6h

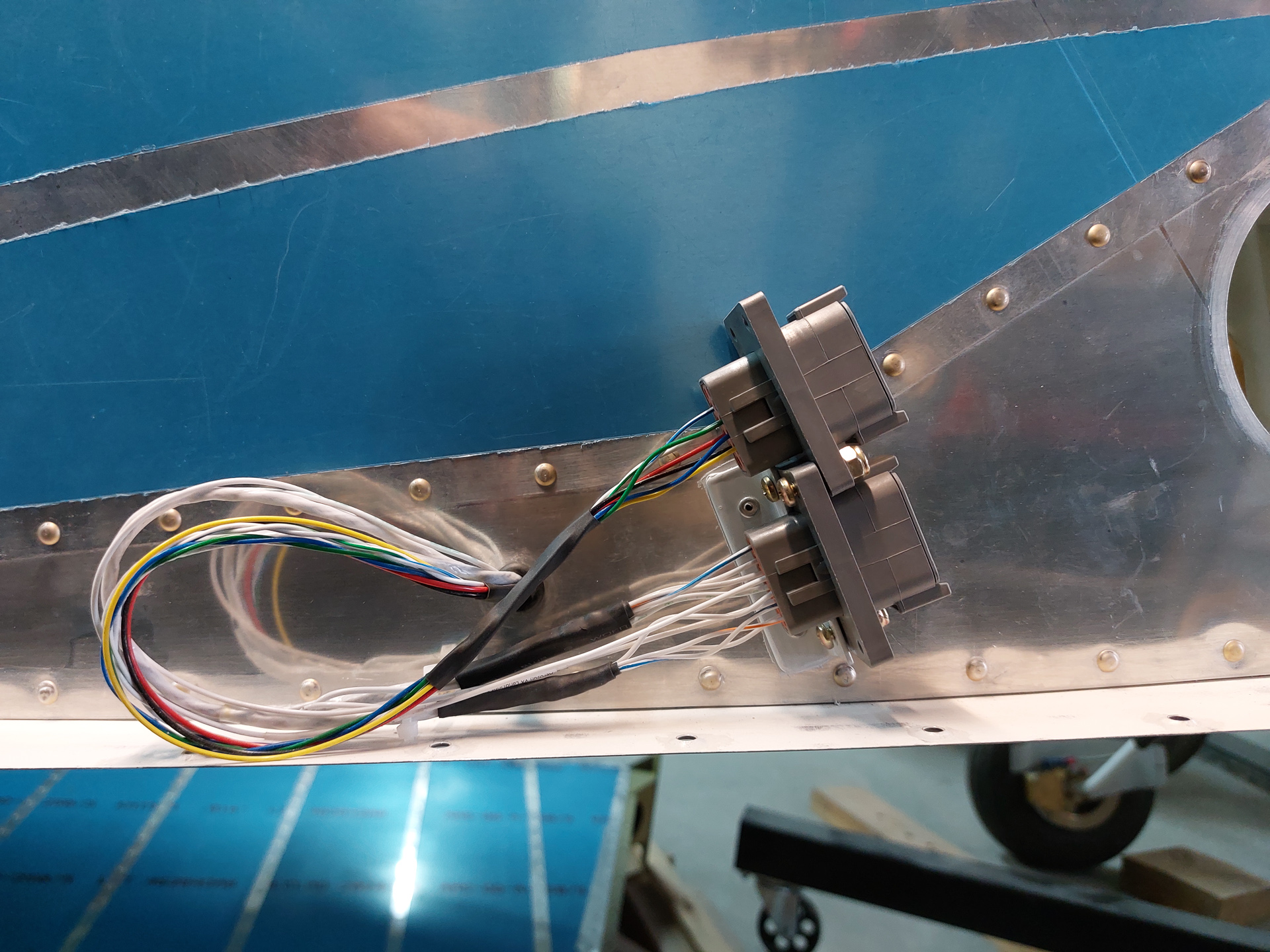

Small project today, installed the male Deutsch TE-connectors. One connector is used for the lights and tank sender, the other one is for the Dynon AP servo electrical connection.

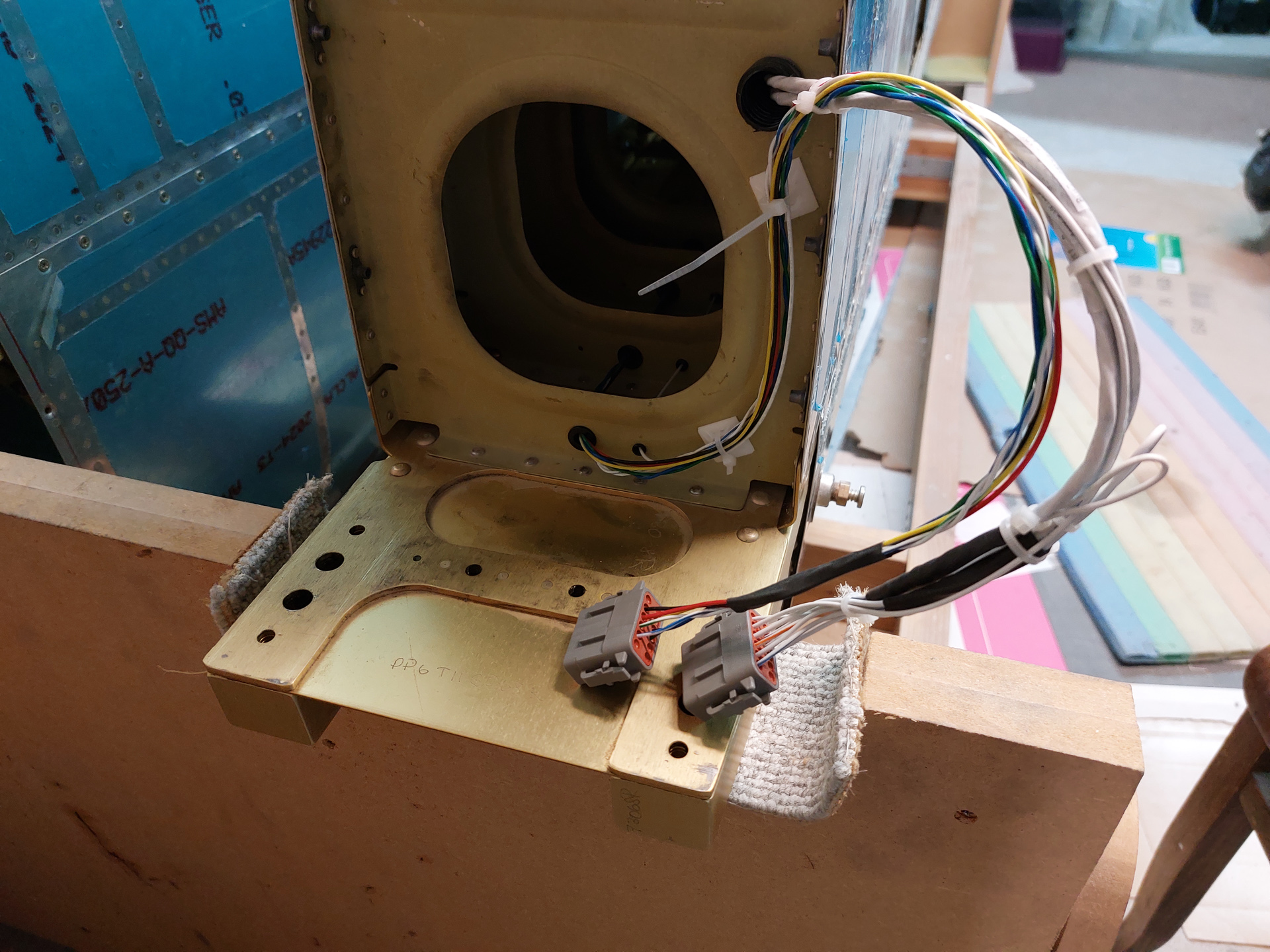

This is the female side on the passenger side. I stacked 2 the connectors on an aluminum angle bracket.

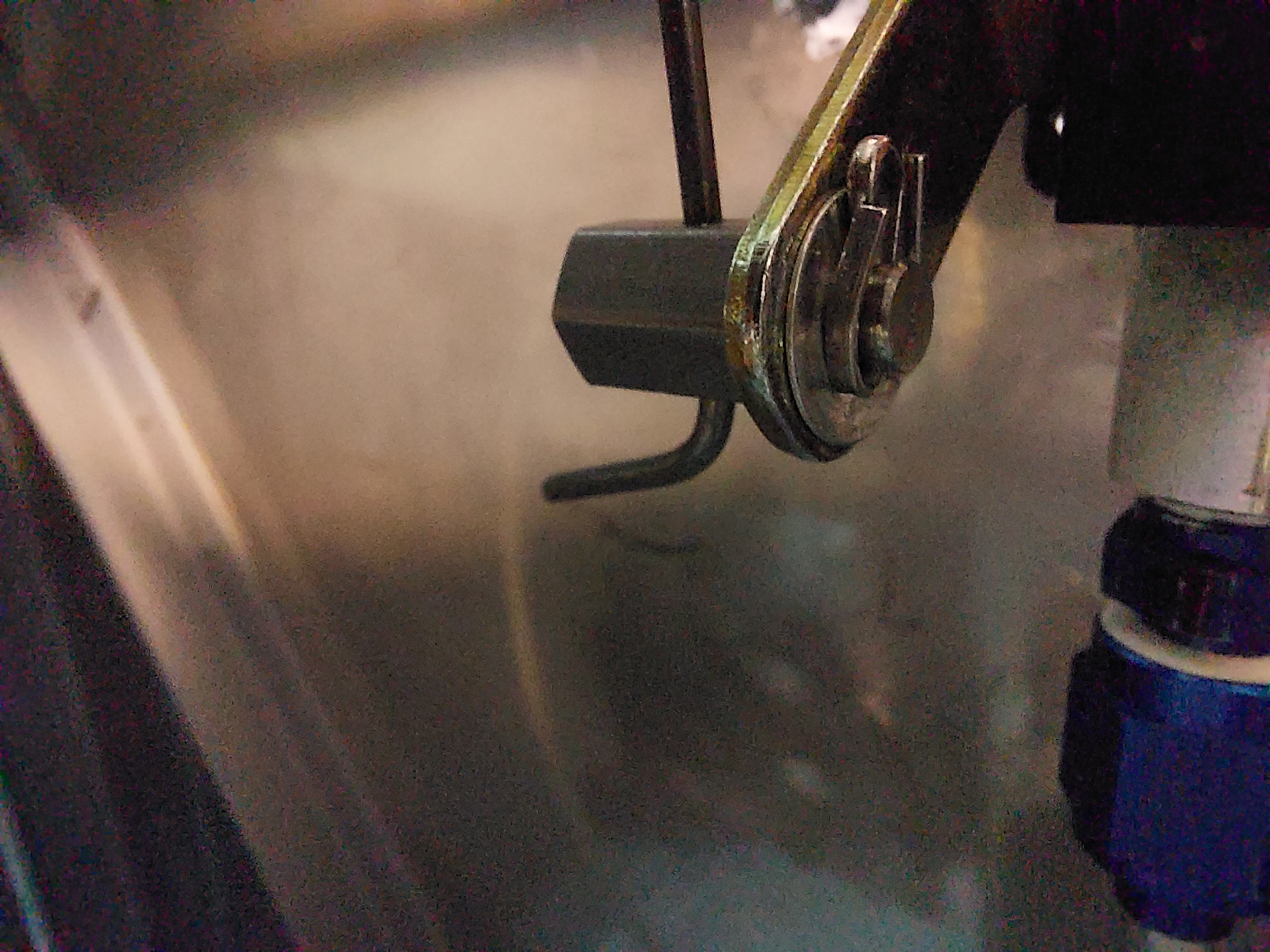

Another small task done today, installed the parking brake cable in the B-nut, bent the end and installed a cotter pin.
