30/06/2023 - Shunt final installation - 1h30

With the doubler plate rivetted to the firewall, it's now time for final installation of the shun and 60 AMP ANL fuse.

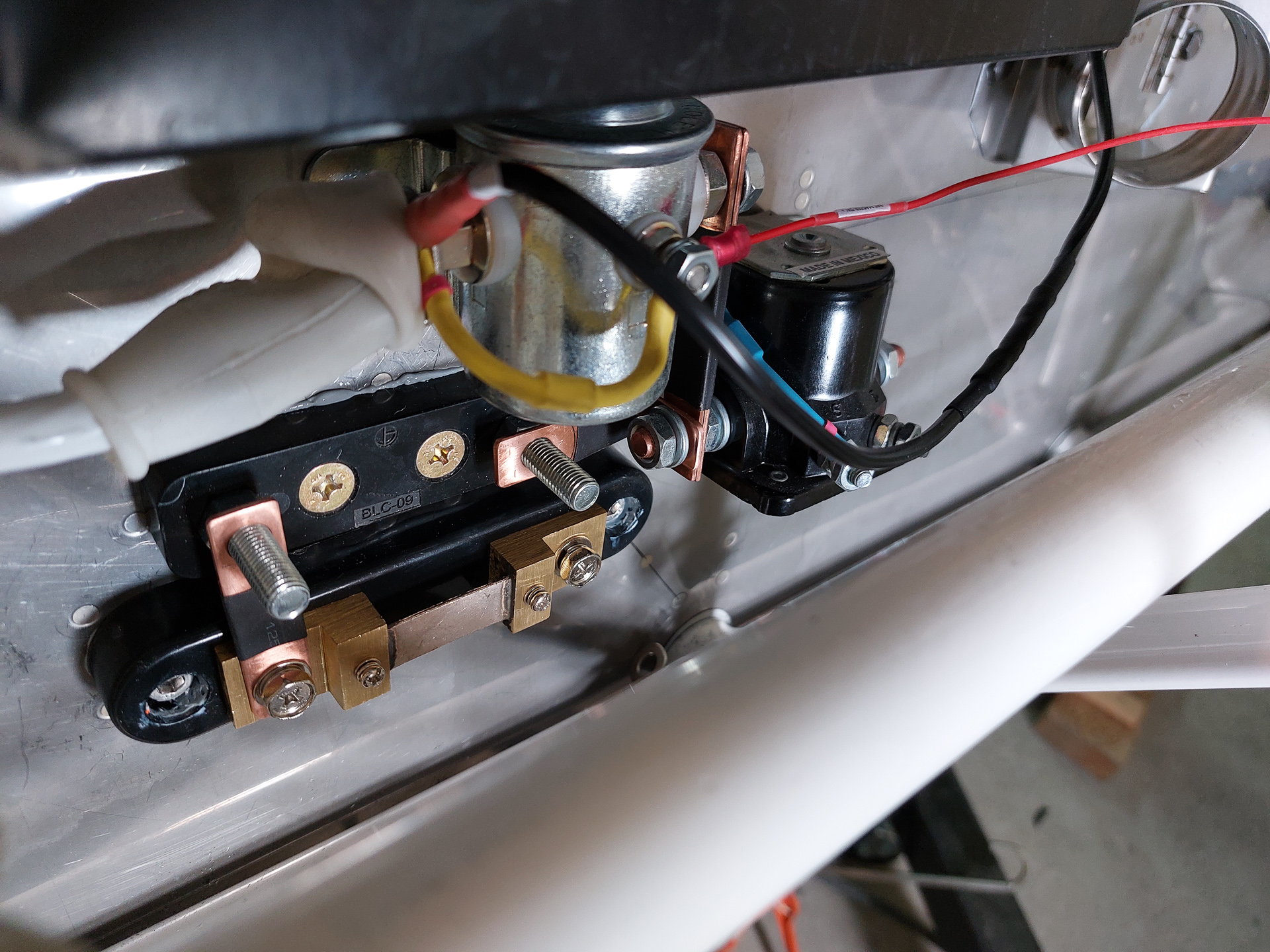

The copper bars are used to connect the components positive bat side.

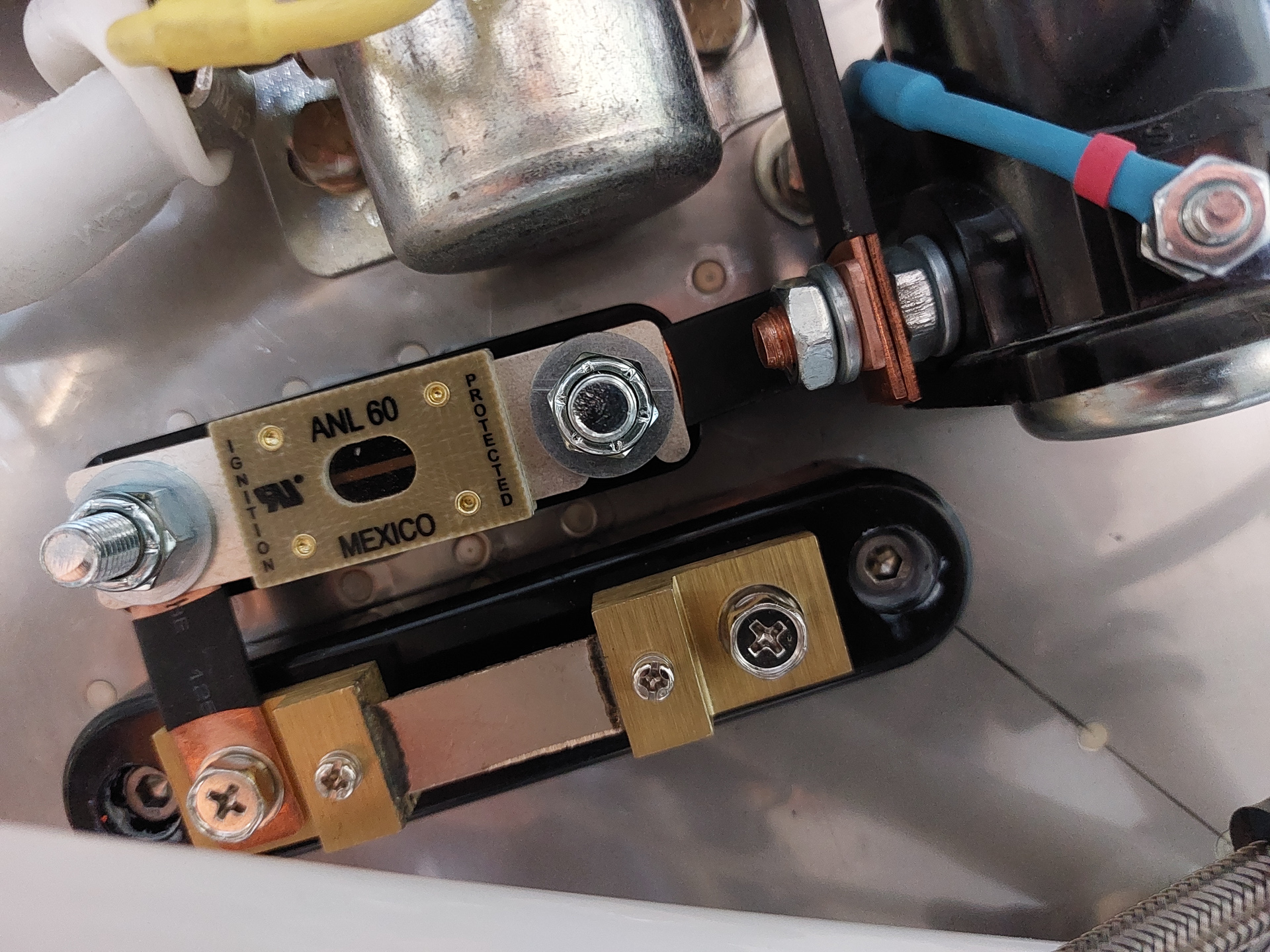

Fuse installed as well. The dynon shun below is used to measure current. The 60AMP fuse above protects the wiring to the battery.
