30/03/2019 - Dimpling F-7106 top skin - 2h

I still had to deburr sides of the F-7106 top forward skin.

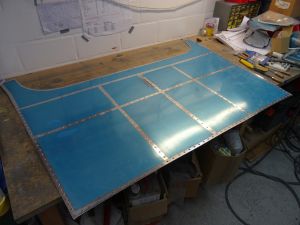

When that was finished, dimpled the holes in the skin dor 3/32 rivets.

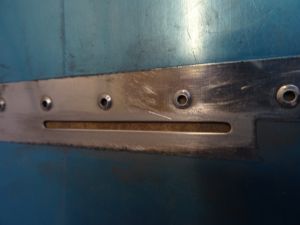

Detailed view of the notch in the skin where the canopy frame passes.

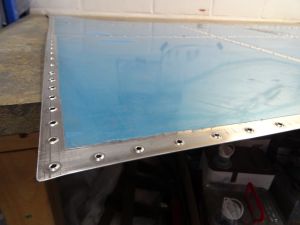

Don't forget to edge roll the sides of the skin before you start dimpling. This time I didn't forget :)
