15-12-2021 - Solenoids and diodes

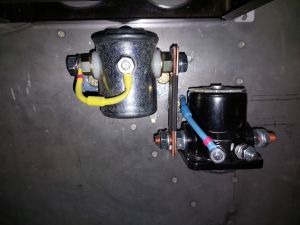

 Had some fun installing the starter and master solenoid to the firewall.

Made a copper bar connection between the common posts and shrinked some shrink tube over it to insulate.

Also installed the 2 diodes which had been hanging around in the shop for a while. They are better of on the plan than losing them somewhere in the hardware stock.
