13/07/2023 - routing static line for adahrs - 1h

Written on . Posted in 5.3. Systems.

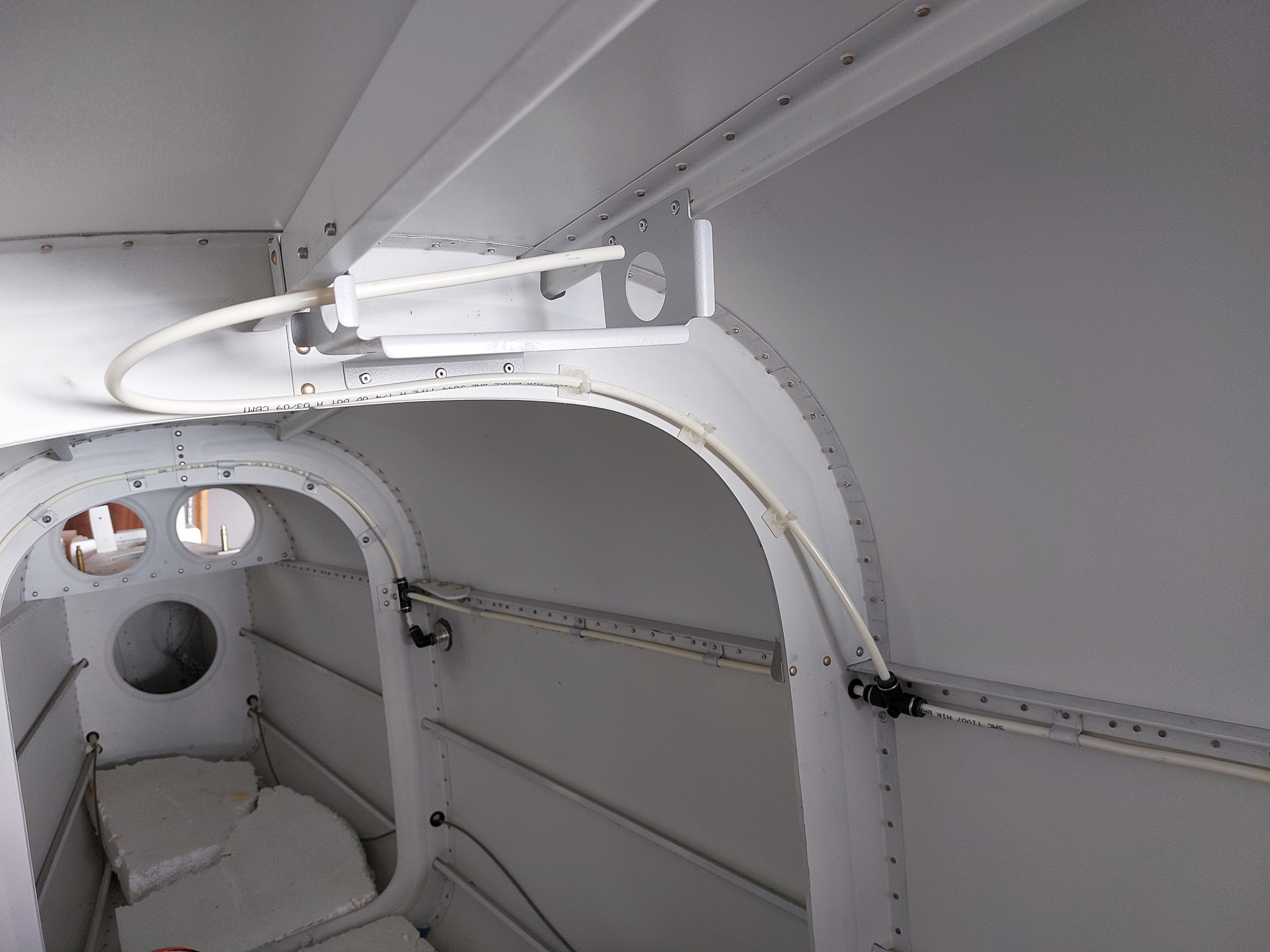

I cut the static line at F707 and installed a T- connector for static air supply to the Dynon ADAHRS module. the rest will be routed forward. Also solved a bypass issue on F706 where the static line had a chance of rubbing against the screw  of the canopy blocks.
