25/01/2024 - Dynon COM radio - 4h

Continued work to install the wiring on the Dynon COM radio. My COM radio is a 8.33spacing radio.

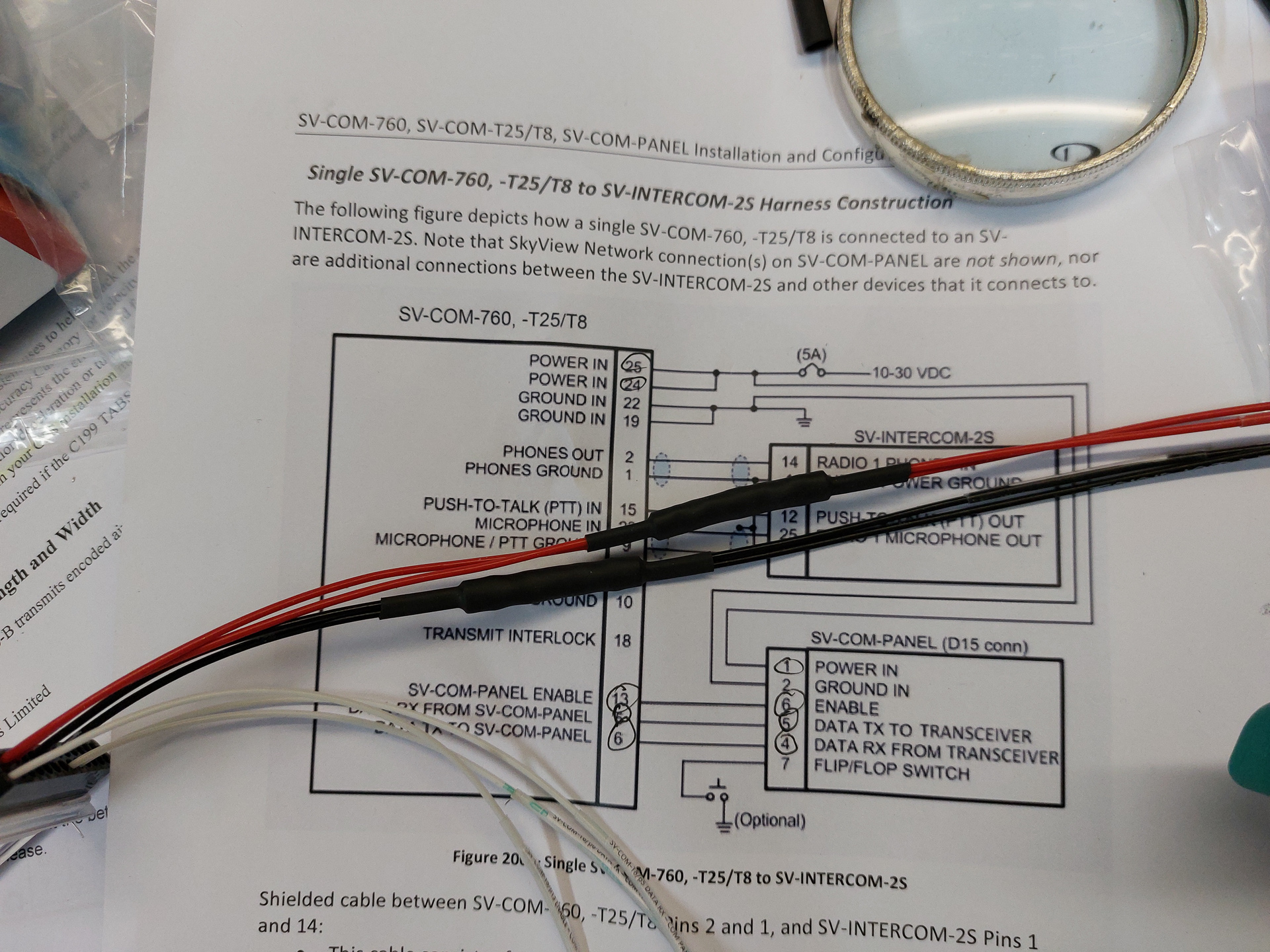

Splitting power and ground wires and heat shrinking

COM Radio connected. The skyview network communicates with the radio through the COM-Panel-Module.

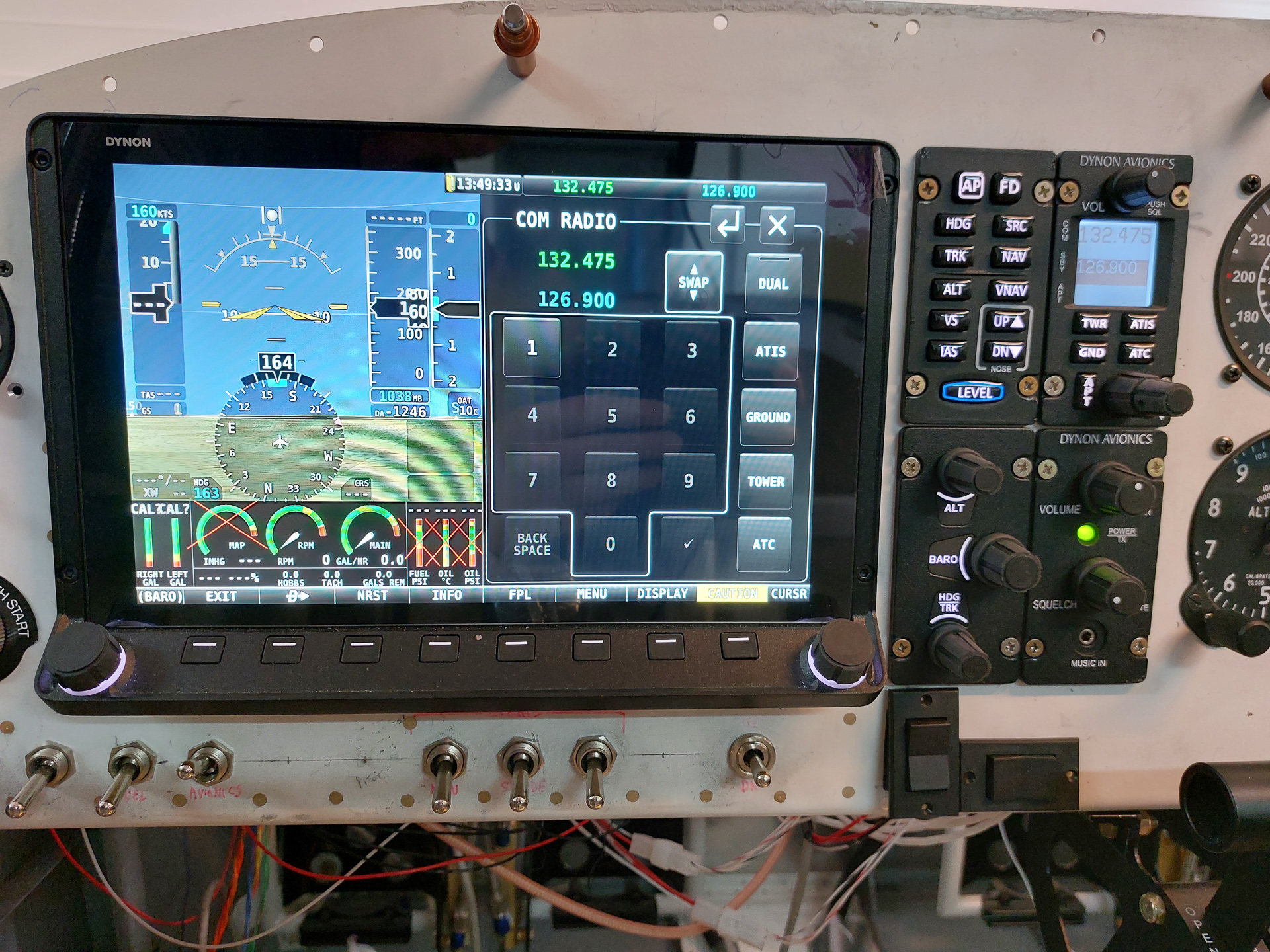

The COM-Panel module is wired to the actual radio remote box. Now the COM radio functions are available on the HDX display.

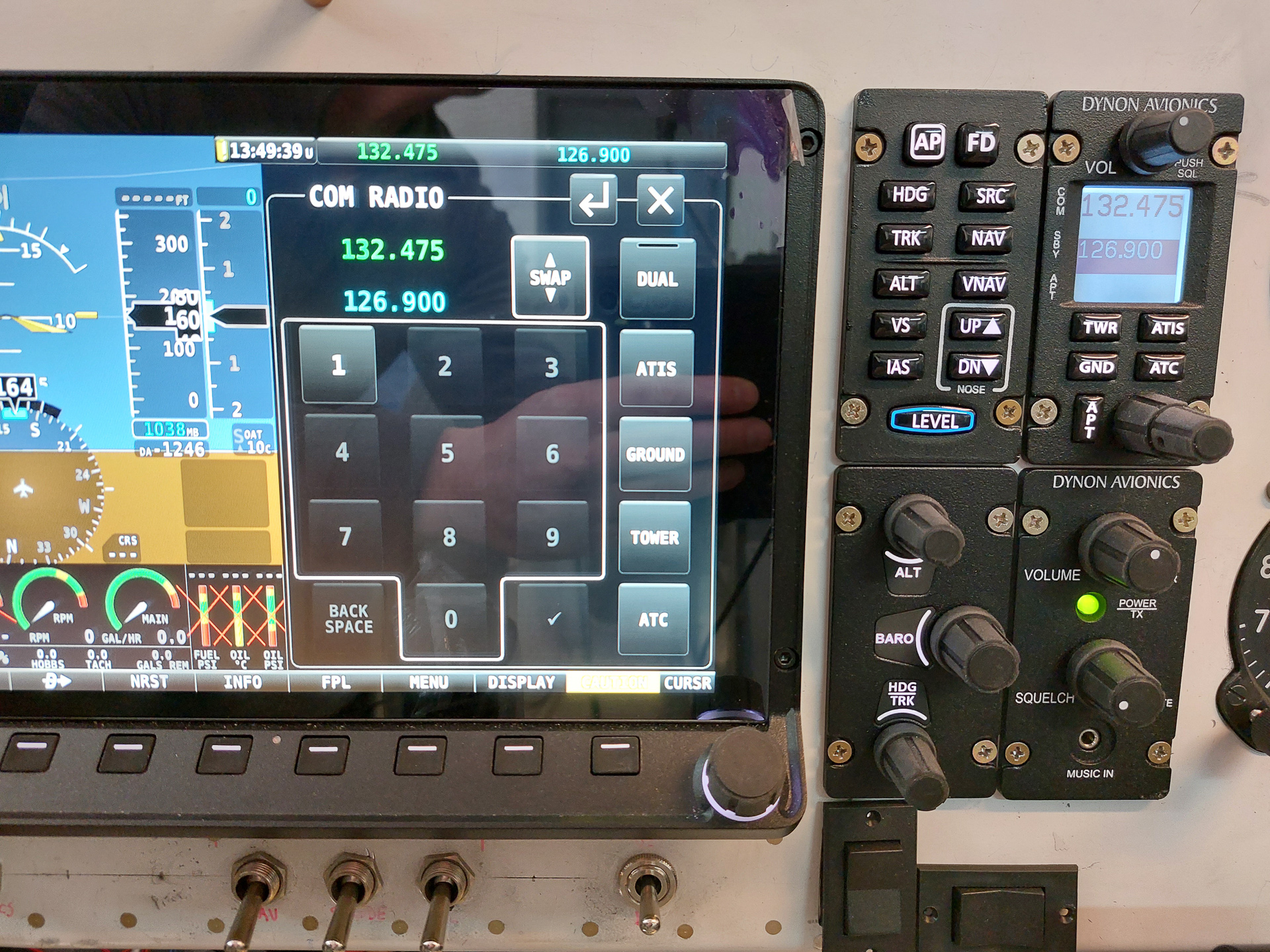

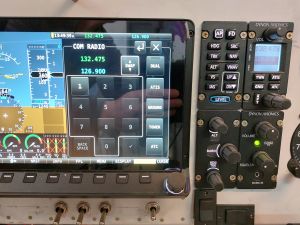

COM radio can be controlled by using the touch screen or using the knobs and buttons on the dedicated COM-Panel.
