07+08/07/2023 - wiring switches and testing VPX operation on laptop - 6h

Details
Parent Category: Instruments / Electrics
Category: 3. Systems
Hits: 293

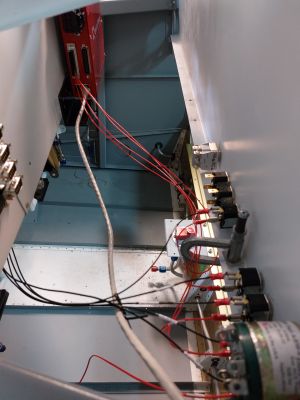

Only one picture but a very exciting moment as the VPX Sport Pro was fired up for the first time.

I wired the master switch and connected it to the master solenoid. The master solenoid is wired directly to the solenoid and is not controlled by the VPX.

When master switch was wired, I fired up the vpx. Lights came on as expected.

I wired the other switches to the pins on te d-sub connectors for switches on the VPX.

Then ran the cross ethernet cable to my laptop and started the vpx configurator software. No firmware updates were required.

The configurator has a test page which allow you to monitor the position of the switches. Very cool to see some life in the cockpit.
