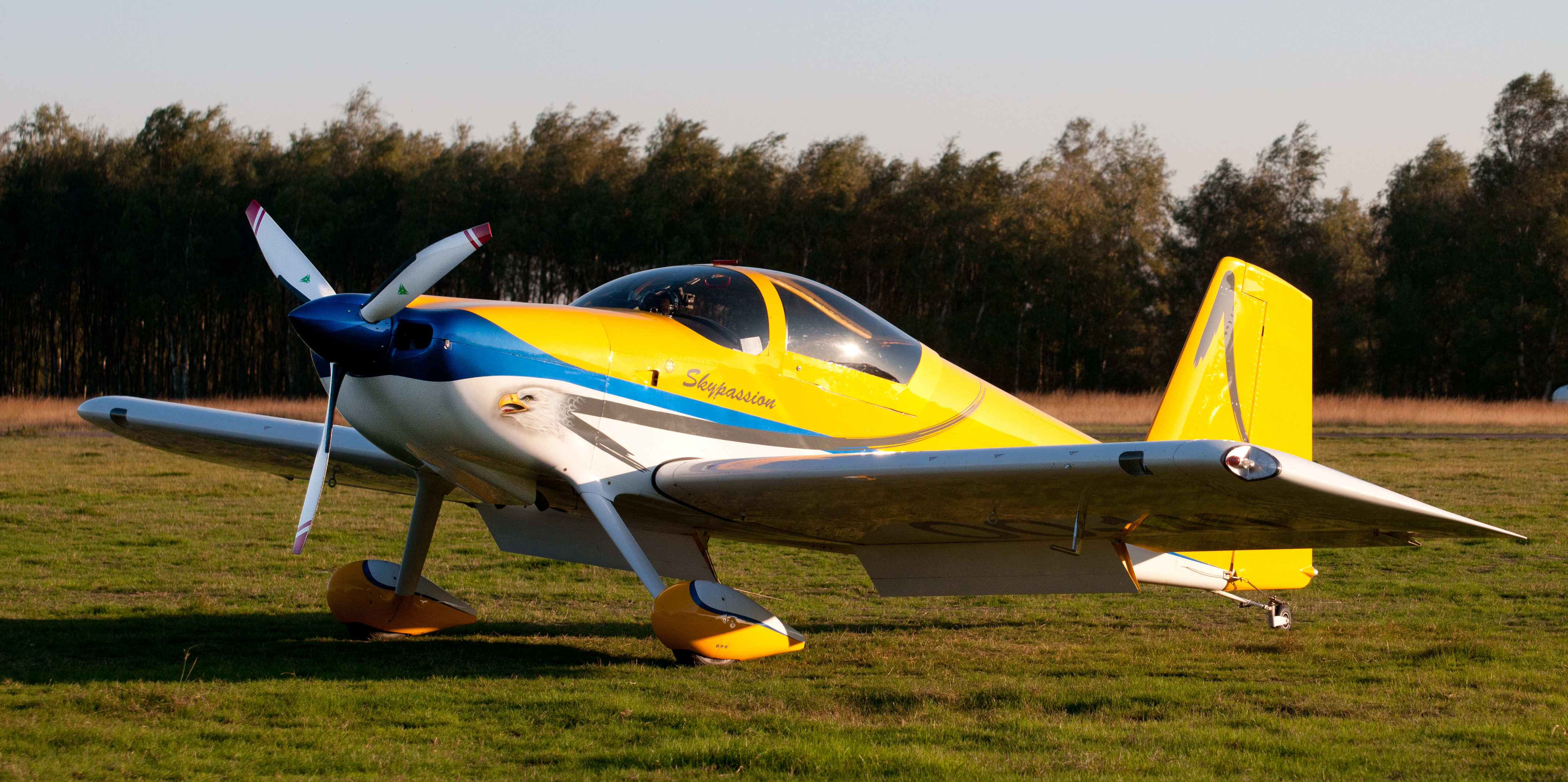

Jur's RV7 Aircraft Factory
2917 hours
and counting
Some decisions in life are bare of any obvious logic



Specifications
Wingspan 25′ 0″ - 7,62m
Length 20′ 4″ - 6,2m
Height 5 ‘ 10″ - 1,78m
Wing Area 120 sq ft
Engine Superior XP-IO-360
Gross Weight 1800 lb
Aerobatic Gross Weight 1600 lb
Wing Loading Solo (Gross) 11.7 (15.0) lb/sq. ft.
Power Loading Solo (Gross) 7.0 (9.0) lb/hp
Empty Weight 1114 lb
Propeller 3-Bladed Constant Speed
Fuel Capacity 42 gal
Baggage 100 lb
Performance
Horse Power 180 hp
Top Speed [gross weight] 216 mph
Cruise [gross, 75% @ 8000 ft] 206 mph
Cruise [gross, 55% @ 8000 ft] 186 mph
Stall Speed [gross] 58 mph
Takeoff Distance Solo (Gross) 250 ft (500 ft)
Landing Distance Solo (Gross) 350 ft (500 ft)
Rate of Climb Solo (Gross) 2550 fpm (1900 fpm)
Ceiling Solo (Gross) 25,500 ft (22,500 ft)
Range [75% 8000 ft] 785 sm - 1263 km
Range [55% 8000 ft] 870 sm - 1400 km
Airspeeds
VSO 58 mph - 93 km/h
VS1 64 mph - 103 km/h
VFE 100 mph - 161 km/h
VNO 193 mph - 311 km/h
VNE 230 mph - 370 km/h
VA 134 mph - 216 km/h



Some interesting links related to the Vans Aircraft Building.

Take a sneak view at Vans Aircraft factory.

Look here how a propellor is made at Hartzell.


How to use

Use the kit buttons in the top ribbon bar to see a chronological overview per sub section per kit. For the full chronological article list, see chronological build link in prelude menu here below. The easiest way to lookup information is by typing in some part numbers or keywords using the search option in the ribbon bar



Caution !

Some advice on reading my log for fellow builders !

In some articles, I made corrections at later date on the original article to rectify my own stupidities or faults. Read through the entire article if you intend to use my findings/experiences on your own project !
