12/01/2019 - Starting Fwd Top fuselage - 6h

Details
Parent Category: Fuselage
Category: 9. Forward and Center fuselage
Hits: 739

The final section for construction before we start putting empenange wings together with the fuselage is the forward top fuselage section.

Today was a full day of deburring and some small other tasks and positioning items in place to get a clear picture on how everything fits together.

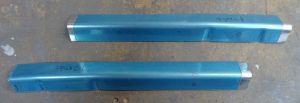

I started by fluting F-7103C L and R. These have to follow the curve on the F-7103 instrument panel. The flutes have to be positioned carefully as both angles will also receive 3 AN515-8R8 screws.

After many hours of vixen, v-tool, scotchbrite and straighten flanges, it came out looking like this.

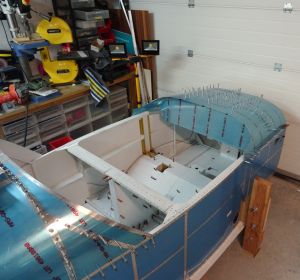

I also test fitted the skin on. It's thight but it fits correctly. Maybe I'll try to pre-brend the sides a bit next time I'll put her on.

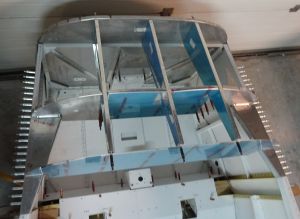

This is also a great moment to test fit your angle pieces behind the F-7103.
