Fuel Tanks work

Z-Brackets preparation - 05/01/2012 - 1h

Details
Parent Category: Wing
Category: 5. Fuel Tanks
Hits: 1156

Preparation work continues on the Z-brackets.

As the name says, the Z brackets have a Z shape aluminum form.

They are used to support and attach the fuel tanks to the main spar.

First you have to pre-drill them, them install to spar and matchdrill. Later the fuel tanks are fitted on top of them and matchdrilled from the top to ensure a good match between leading edge skin outboard and fuel tank skin.

This is a deviation from the plans. Vans manual follows another procedure but I will follow a method called the 'Dan Checkoway' method. It's known by most and you can find good illustrations on it on multiple websites. I will explain later as I move on to the matchdrilling part.

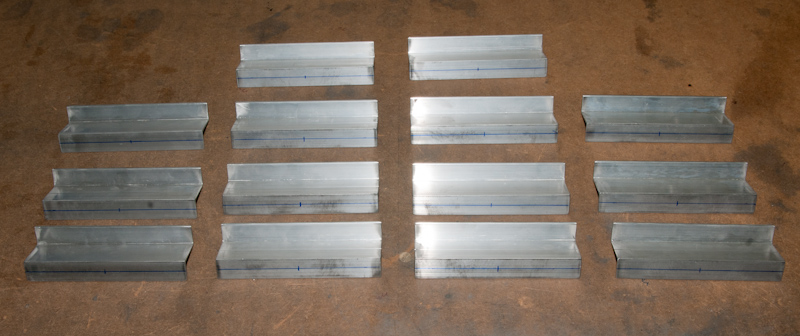

All brackets are edge cleaned and the center line is drawn on one side, ready to drill the center hole for the AN3 bolt.
